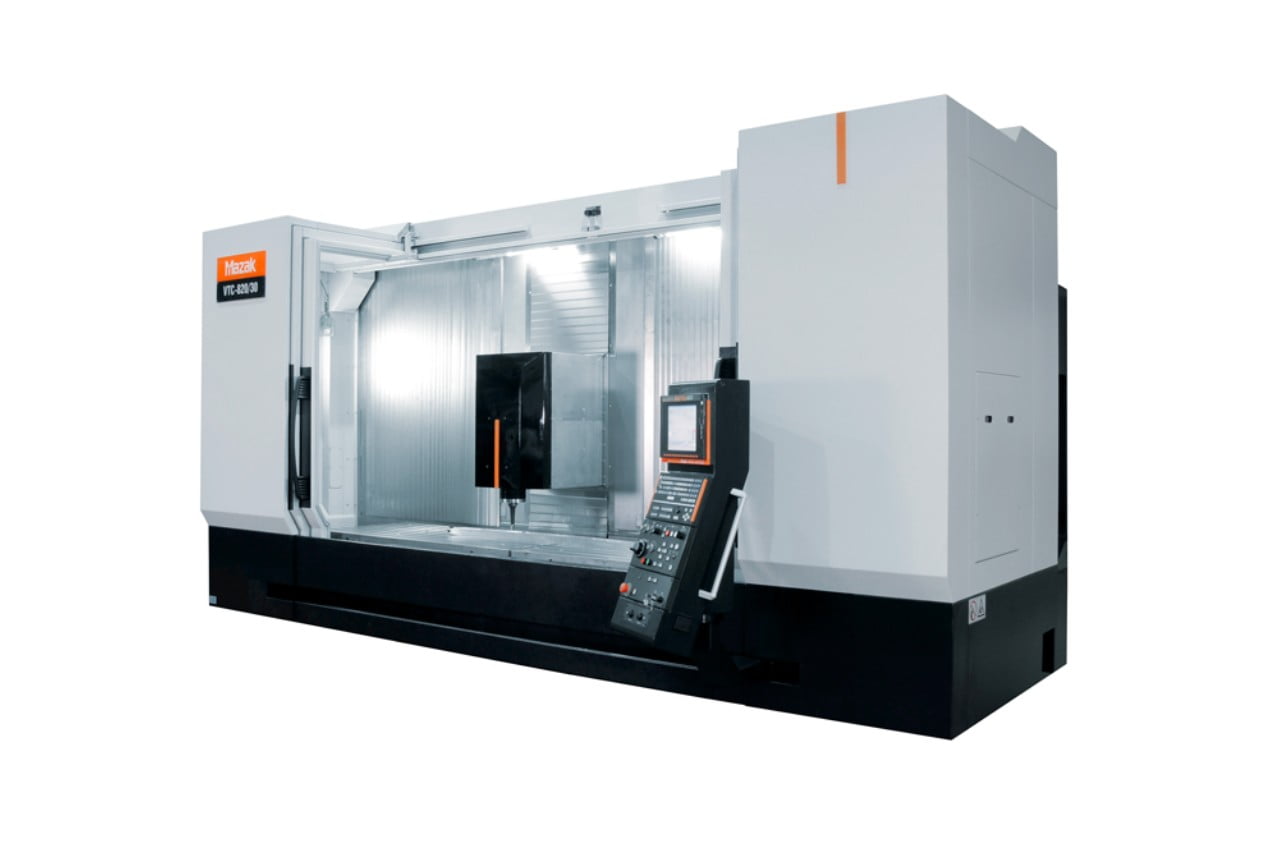

Versatility and performance are provided by the large 3 m X –axis and 820mm Y-axis and the optional Mazak Rotary table (R) helps to further reduce setup times and increase productivity.
Vertical Machining Centre:
Digital Vertical Machining Centre with Traverses of:
The QUICK TURN 200M CNC turning centre with Multi-Tasking capability brings together advanced technology, productivity and value to deliver exceptional performance for shops large and small. Plus, the QUICK TURN 200M comes with the SmoothG CNC that features MAZATROL conversational programming, complete with monitoring and diagnostics, and EIA-ISO programming as standard. Along with a standard through-hole chuck package and integral turning spindle motor, this QUICK TURN features milling (M) capability to efficiently process a wide range of parts in a single setup. For fully automated operations, the machine can be optionally outfitted with a bar feeder or gantry robot loader for even higher levels of productivity.

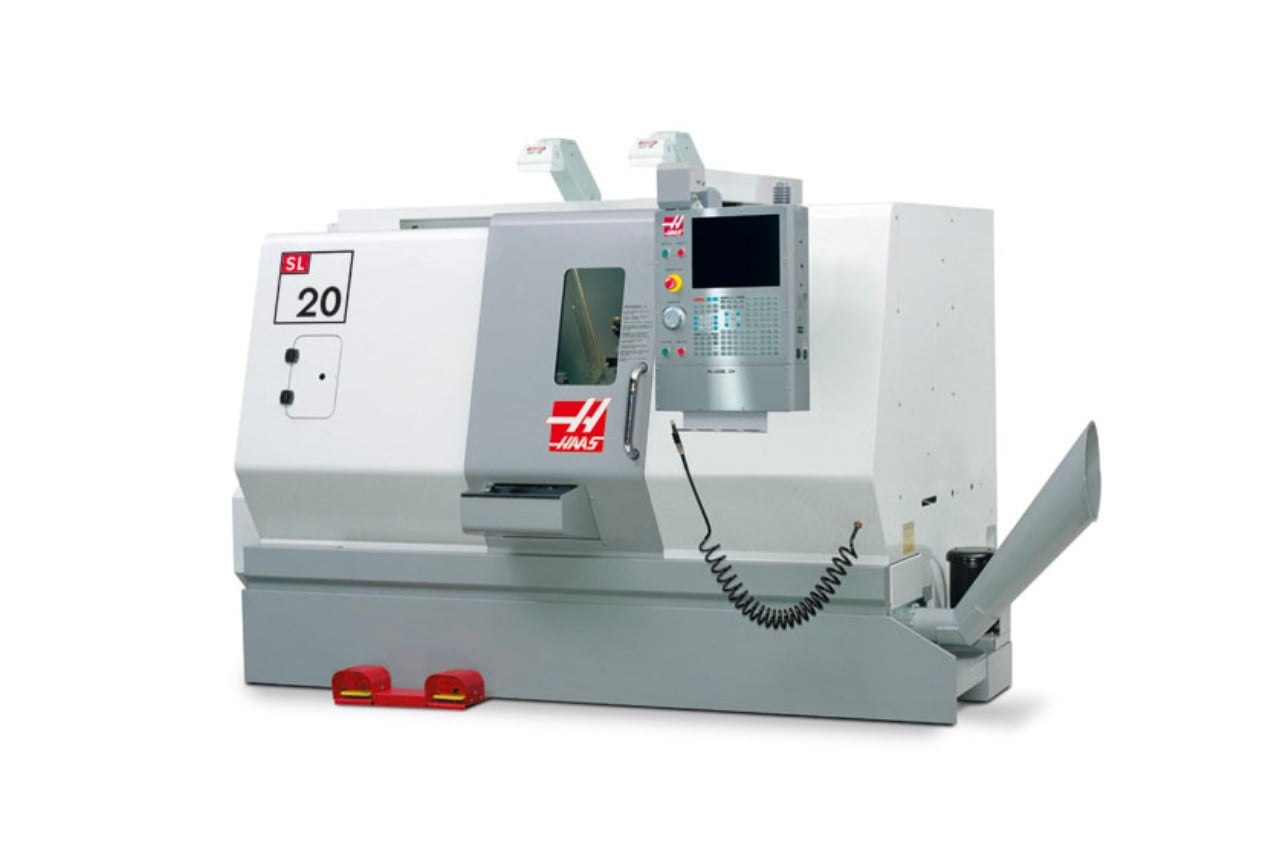

Specification |Swing over front apron 584mm |Swing over cross slide 241mm |Maximum machining diameter 262mm |Maximum turning length 508mm |Spindle nose A2-6 |Hole through spindle 76mm |Bar capacity 51mm |Maximum spindle speed 4000rpm |Spindle motor power 14.9kW |Number of turret tool stations 10
Coolant tank : capacity, litres 151 |Rapid traverse Z/X axis 30.5m/min |Power requirement 14kVA |Approximate weight 4100kg|Machine equipped with:- |Haas CNC Control System |Hydraulic 3 jaw chuck |Hydraulic tailstock |Tool presetter |Swarf conveyor |Parts catcher |Interlocked guarding |Automatic lubrication system |Coolant system |Manual
Spindle Speed 6000 RPM, Turret Stations 8 Tool Holder Shank VDI 30 Spindle Motor 12/20
HP Dimensions Length 92” Depth 76” Height 70”
Weight Approximate 5300 LBS.
The M32 is renowned for its leading capability for 3 tool simultaneous machining in a compact floor space. The all-round combination of flexible tooling, large tool capacity, and outstanding ease of use has made the M32 our success story in the new century. The next generation M32 increases the 3 tool simultaneous machining abilities with a new Y3 axis on the back tool post which carries up to 9 tools (up to 6 driven).
New advanced functions include a B axis on the gang tool post with 4 axis simultaneous containing control. In addition the machine boasts an improved / upgraded turret with direct indexing, faster rapid feed rate (up to 32m/min) and reduced power consumption.
